OPC UA DA DEVICE DRIVER | SIEMENS

TOP

This CNCnetPDM device driver for Siemens Sinumerik 840D SL and 828D controllers with OPC Unified Architecture (UA) enables you to monitor and output machine-, process- and quality data from machines with these controllers. It also allows you to change or write parameters and variables on these devices.To find out if your device runs OPC UA see: Detect OPC Standard.

This driver supports all controllers running Sinumerik Operate version 4.5 (>= SP3), 4.7 and 4.8.

  • Note: Please use our CNCnetPDM Standard OPC UA Device driver for machine monitoring and control as it additionally allows event driven data acquisition, comes with enhanced certificate handling and supports all OPC UA security modes and policies used by recent Siemens Sinumerik controllers!

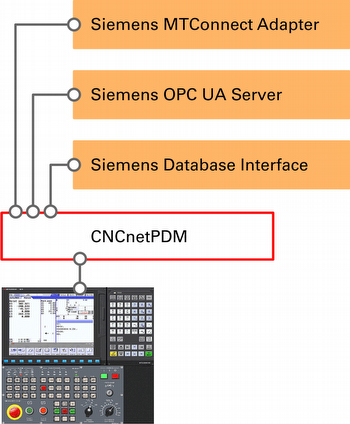

CNCnetPDM Siemens Sinumerik IoT Interfaces

Siemens Sinumerik IoT Interfaces

Output example

PREREQUISITES | DOWNLOAD DRIVER | LICENSING | SETUP CNCNETPDM | USAGE | SETUP BACKGROUND SERVICE | ADJUST ITEMS | COMMANDS | WRITE DATA | TIPS | TROUBLESHOOTING | UPGRADE DRIVER

You can dynamically define your own set of items (up to 30) that can be enabled and disabled on a per machine basis by an INI file that is automatically created with reasonable default values for each machine configured. This INI file also allows you to define your own names for every tag.

  • To read/write data from/to machines with Sinumerik 840D SL and 828D controllers connected to CNCnetPDM with your applications you can use our free Open Source Client (C-Sharp)

Sinumerik 840D SL CNC (Operate 4.7)

FIG 1: Sinumerik 840D SL CNC (Operate 4.7)

PREREQUISITES

  1. Please make sure that your controller is properly setup and you get data with our utility tool CNCnetPDM.OpcUA.SimpleClient (Sinumerik Operate 4.5) (Sinumerik Operate 4.7 and 4.8). Setup instructions can be found here: Sinumerik Operate 4.5, Sinumerik Operate 4.7 and 4.8.
  2. Microsoft .NET 4.0 has to be installed on your PC
  3. OPC Core Components have to be installed on your PC
  4. Firewall at your PC has to be switched off or an exception for TCP Port 4840 has to be added.

DOWNLOAD DRIVER

LICENSING

This device driver requires the most recent version of CNCnetPDM and also works with a free license. However, in this mode you only get output for the first item configured in your INI file. With a valid license you are able to output the result of up to 30 functions per reading cycle, see licensing for details.

SETUP CNCNETPDM

  • Download CNCnetPDM and install it as described in the quick-start-guide.
  • Download the Sinumerik OPC UA device driver, extract all content of sinumerikua_dll.zip into the folder where you have CNCnetPDM installed.
  • Edit CNCnetPDM.ini and add a new device as described in the quick start guide point 7. If you already have an entry in section [RS232] for a machine with a Sinumerik controller you can simply copy and paste this line and change its content.
  • Change the line as follows:

Configure Sinumerik OPC UA device driver in CNCnetPDM.ini

1 = 1001;19200;8;N;1;SINUMERIK #1;192.168.1.100;0;0;localhost;0;0;none;none;0;sinumerikua.dll
FIG. 2: Configure Sinumerik OPC UA device driver in CNCnetPDM.ini

For machines with Sinumerik 840D SL and 828D controllers you only have to change the last parameter (1) to sinumerikua.dll. Of course you also have to make sure that IP Address or DNS Hostname of your controller are correct.

USAGE

  • Start CNCnetPDM foreground program is sufficient (Start thread)
  • CNCnetPDM automatically copies the original sinumerikua.dll and appends the machine number as configured in the INI file, e.g. sinumerikua_1001.dll for machine 1001.
  • In addition an INI file with the same name is automatically created by the device driver, e.g. sinumerikua_1001.ini for machine with device number 1001.
  • Double click CNCnetControl, if your device number is 1001 and the device name is SINUMERIK #1 the output should be similar to the one below:

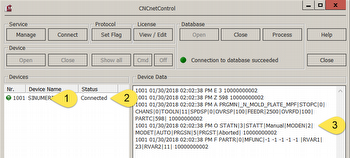

CNCnetControl Sinumerik 840D OPC UA

FIG 3:    CNCnetControl (Sinumerik)

Here the machine (1) shows up as connected (2) which is good. On the right side (3) you see the acquired data:

  • The line starting with O contains items defined in the INI file of the device that should be output to section 1. If you didn’t change the INI file you get something like the following:

1001 01/30/2018 02:05:38 PM O STATN| 3| STATT| Manual| MODEN| 2| MODET| AUTO| PRGSN| 5| PRGST| Aborted|  10000000008

Every item has a description followed by its value. All descriptions and values are delimited by pipe ‘|’ symbols. This allows CNCnetPDM to create a database record for every item.

With an unmodified INI file the initially configured items are:

ID

NAME

DESCRIPTION

0

AUTOM

Automatic mode (numeric)

1

PRGST

Program status (numeric)

2

PARTC

Part counter (numeric)

3

STATN

OEE Device state (numeric)

4

STATT

OEE Device state (text)

5

MODEN

Device mode (number)

6

MODET

Device mode (text)

7

PRGSN

Program state (number)

8

PRGST

Program state (text)

9

PRGMN

Name of the selected program

10

STOPC

Stop condition

11

CHANS

Channel status

12

TOOLN

Tool number

13

SPDSP

Spindle speed

14

OVRSP

Override spindle percent

15

FEEDR

Actual feed rate

16

OVRFD

Override feed

17

PARTC

Actual part count

18

PARTR

Required parts

19

MFUNC

Active M functions

20

RVAR1

Value of R variable 1

21

RVAR2

Value of R variable 2

FIG 4:    IDs, names and description of items

SETUP BACKGROUND SERVICE

To setup a CNCnetPDM background service proceed as follows:

  • Right click CNCnetPDM, select ‘Run as Administrator’
  • Click button [Install]
  • Check ‘Automatic Startup’ if the service should start automatically
  • In dropdown field ‘Depends on service’ you can select a service that has to be started before CNCnetPDM starts (e.g. a database service)
  • Leave all fields in section ‘Service Account’ blank.
  • Click button [Ok], the dialog closes.
  • You can now click button [Start] to manually start the service.

See also: Setup CNCnetPDM as a background service

ADJUST ITEMS

This device driver enables to dynamically add, group, enable or disable items and change their names. The INI file automatically created by the device driver for every machine contains sections that allow you to control its behavior.

Section [GENERAL] contains information about global parameters used by the driver on startup.

‘Commands’ defines the number of OPC commands you’d like to execute, maximum value = 30.

‘Alive command’ defines the OPC item number (section) that should be queried to detect if your controller replies to OPC commands. Please only change this to another number if your controller does NOT reply to command ‘/Bag/State/opMode’. Use our CNCnetPDM.OpcUA.SimpleClient (Sinumerik Operate 4.5) (Sinumerik Operate 4.7 and 4.8) program to check if you can read this OPC item.

‘Server port’ defines the TCP port number of the OPC Server at the controller, typically 4840.

‘Namespace’ sets the namespace to be queried, typically ‘SinumerikVarProvider’

‘Username’ and ‘Password’ are only needed for Sinumerik Operate 4.7 and 4.8 for Sinumerik Operate 4.5 you can leave these values blank.

‘No authentication’ has to be set to 1 for Sinumerik Operate 4.5 and 0 for Sinumerik Operate 4.7 and 4.8. Initially this is set to 1. For version 4.7 and 4.8 this has to be set to 0!

OPC Items you query are organized in sections e.g. [2]. Every section contains entries where you can define names and parameters for a specific OPC item. Unless otherwise instructed do NOT change sections [0], [1] and [2].

Description of the numeric sections:

Entry

Description

[0]

Section identifier, numbers starting with 0 are queried

Active

If you set this to 0 the command is not executed

Name

A short name (max 5 characters) to describe the item e.g. STATN for status number

Comment

A comment that describes the command (optional)

Command

OPC command to be executed e.g. ‘/Channel/State/progStatus’ for NC program status. The command ‘cnc_oeestate’ executes several OPC commands and calculates output relevant for OEE, see section ‘Output item’ and chapter ‘Commands’ below.

Output item

For normal OPC commands like ‘/Channel/State/stopCond’ this is NOT needed. Only for command ‘cnc_oeestate’ you can enter the values described in chapter ‘Commands’ below.

Output section

You can output data to 3 sections that may contain up to 256 characters. 1 goes to section ‘O’, 2 to ‘A’ and 3 to ‘F’. If data in one section exceeds the maximum length you can send items to a different section. Make sure you have entries CollectOrders, CollectFeeder and CollectQuality enabled (=1) in CNCnetPDM.ini.

FIG 5:    Description of a device INI file section

Note:   To change commands, switch items on or off or alter its name while CNCnetPDM is running open the INI file with a text editor such as notepad, make the desired changes and save the file. To apply the changes immediately you can click on the machine in CNCnetControl on the left side followed by clicking buttons ‘Close’ and ‘Open’ above the section ‘Devices’.

COMMANDS

Here you can find information about commands and output items that can be used with this driver. In general you can use all commands supported by Sinumerik 840D SL and 828D controllers with OPC UA. See the ‘Parameter Manual’ of your controller for details or contact us if you need help.

Command cnc_oeestate

This special command is not a real OPC item like ‘/Channel/State/progStatus’ for NC program status. It executes several OPC commands and calculates output relevant for OEE. It also translates numeric output of specific OPC queries into text.

COMMAND

OUTPUT ITEM

NOTES

cnc_oeestate

statenumber

Numeric OEE state of the device (2 = producing, 3 = manual, 4 = interrupted, 5 = error)

cnc_oeestate

statetext

State of the device as text (producing, manual, interrupted, error)

cnc_oeestate

modenumber

Numeric running mode of the controller (0 = JOG, 1 = MDA, 2 = AUTO

cnc_oeestate

modetext

Running mode of the controller (text output)

cnc_oeestate

prgstatenumber

NC program state (numeric) (0 = Undefined, 1 = Interrupted, 2 = Stopped, 3 = Started, 4 =Waiting, 5 = Aborted)

cnc_oeestate

prgstatetext

NC program state (text)

FIG 6:    Description of command ‘cnc_oeestate ’

WRITE DATA

CNCnetPDM for Sinumerik 840D SL and 828D controllers also supports writing and changing of data on these devices from a remote PC. Although writing of ALL writable OPC items is supported it is highly recommended to start with simple commands like changing ‘R variables’. To do so proceed as follows:

With an unmodified INI file for a controller CNCnetPDM queries two ‘R variables’, section [20] = ‘R variable 1’, section [21] = ‘R variable 2’. To change the value of these 2 variables CNCnetPDM has to be running and you should see data for RVAR1 and RVAR2 via CNCnetControl, section ‘F’.

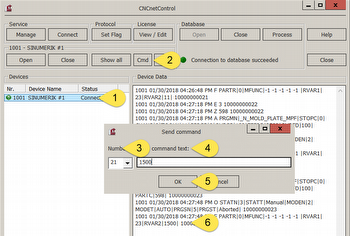

To change the value of a parameter first click on the device in the left pane (1). Then click on button [Cmd] (2). In the drop down box below number (3) select or input 21. Enter a new numeric value into the text box below command text (4) here 1500. Click button [OK] (5). You can see the new value in the ‘Device Data’ area in the right pane (6).

Write data to Sinumerik 840D or 828D controller

FIG 7:    Change R-Variable on Sinumerik 840D SL or 828D controller

All successful write actions and errors are written to the device’s log file in subfolder \log.

TIPS

  • All OPC items on Sinumerik Operate 4.5, 4.7 and 4.8 are case sensitive, for example NC program status has to be queried with /Channel/State/progStatus, if you use /Channel/State/PROGSTATUS you get an error!

  • If you want to add additional items (up to 30 in total) first adjust the number of commands in section [GENERAL]. Then, copy and paste the last numeric section and do not forget to adjust the section number and its content!

TROUBLESHOOTING

  • The device driver writes a log file entry for any communication issue to the log file of the device. The file can be found in subdirectory \log of your CNCnetPDM program folder. The file format for the log file is log_ + device number + _ + date.txt. Please check this file first if you observe an issue.

  • If the machine shows a red icon, state disconnected and you get just output E = 0 the machine is not reachable at all. This has nothing to do with the device driver, the controller is switched off, it’s a network issue or DNS Hostname or IP Address is wrong.

  • If the machine shows a green icon, state connected but you just get output E = 1 the machine is reachable but the controller does not respond to commands, check your controller setup (Version 4.5) (Version 4.7 and 4.8) and the parameters used in section [RS232] of CNCnetPDM.ini. Please use the tool CNCnetPDM.OpcUA.SimpleClient (Sinumerik Operate 4.5) (Sinumerik Operate 4.7 and 4.8) to check if the machine replies to commands.

  • If you do get numeric device states but not any of the preconfigured items please make sure that entries CollectOrders, CollectQuality and CollectFeeder are set to 1 in section [General] of CNCnetPDM.ini.

  • If specific items are not acquired check first with CNCnetPDM.OpcUA.SimpleClient (Sinumerik Operate 4.5) (Sinumerik Operate 4.7 and 4.8) that you get output. Also make sure that the numeric section of the item in the device drivers INI file is activated and has an entry for ‘Name’, inactive or items with empty names are not acquired. Also check that you didn’t misspell entries for command and output item in your device driver INI file.

UPGRADE DRIVER

If you already have a previous version of the driver installed and would like to upgrade to the most recent version proceed as follows:

  1. Stop any CNCnetPDM background service or foreground program that uses the device driver
  2. Extract all content of sinumerikua_dll.zip into the folder where you have CNCnetPDM installed, overwrite the existing files
  3. Delete all sinumerikua_NNNN.dll and ClientAPIUA_NNNN.dll (NNNN = machine number) files. If you already have created adapted INI files for specific devices do NOT delete the sinumerikua_NNNN.ini files.
  4. After restarting CNCnetPDM upgraded device driver versions for all machines are automatically created.
