SETUP | CNCNETPDM MANUAL

This section describes the steps to install CNCnetPDM.

EXTRACT FILES

Create a folder for CNCnetPDM on your PC or at a server. Due to Windows UAC please do NOT to use the directories ‘Program Files’ or ‘Program Files (x86)’ as CNCnetPDM should be able to run as a service under the ‘Local System’ account without any user logged on. In the example below folder ‘D:\MES Plant 1 Manufacturing Cells A to F\’ (1) was used.

Download CNCnetPDM.zip (2). Extract all content of the ZIP file into the direcory created in the previous step. If you’re upgrading from a previous version please stop any CNCnetPDM background service or foreground program first. Next, extract all content into the folder of the existing version, overwrite the old files. You will find the following files:

FILE NAME

DESCRIPTION

CNCnetPDM.exe

Main program

cncinterface.dll

Responsible for communication with devices

device.dll

Device specific functions (This is a simulator device)

erpinterface.dll

Responsible for communication with your database

mtconnect.dll

MTConnect Adapter, responsible for communication with your applications or MTConnect Agents

opcuaserver.dll

OPC UA compliant server

inventcom.der

Security certificate (subfolder cert)

inventcomkey.der

Security certificate key (subfolder cert)

CNCnetControl.exe

Graphical user interface to interact with the service

ServiceDLL.dll

Contains functions used by all components



Extract files

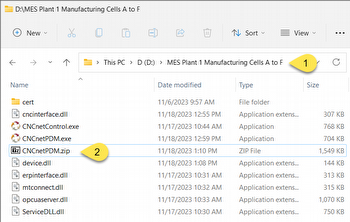

FIG 1:    Extract files from CNCnetPDM.zip

Please continue with Start CNCnetPDM as foreground program TOP
